像增强型光谱仪

作者: Kevin Peng    发布于: 2018-04-06 17:30    点击:

Intensified Spectroscopy

Spectroscopy on a Nanosecond Timescale

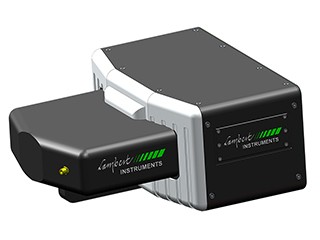

Intensified spectroscopy involves a compact spectrometer, such as the AvaBenchOptical Bench by Avantes, coupled to an intensified CCD or CMOS camera.

A compact spectrometer, such as the AvaBenchOptical Bench by Avantes, is coupled to an intensified CCD or CMOS camera. The input of the intensifier matches the size and spectral range of the projected spectrum. The output is fiber coupled to the CCD or CMOS image sensor. The image intensifier with nanosecond gating provides spectroscopy on a nanosecond timescale. The combination with the intensified high speed CMOS camera allows a recording rate of tens of thousands spectra per second.

 Intensified Spectroscopy
download datasheet


APPLICATIONS

Combustion research
Monitoring dynamic processes
Raman spectroscopy
Food sorting
Air pollution detection

FEATURES

Single photon sensitivity
Spectral range from UV to NIR
Spectral resolution down to 0.5 nm
Variable exposure time down to 3 ns
Recording up to 100000 spectra/s
