订制真空紫外光谱系统

作者: Kevin Peng    发布于: 2018-12-26 21:47    点击:


Vacuum Spectrometer - Custom Monochromators

Vaccum Spectrometer VUV Custom monochromators

Vacuum monochromator to answer specific request

For more than 35 years HORIBA Scientific has been acquiring a large experience in custom systems to closely answer to specific requests from scientific research community.

Segment: Scientific
Division: Custom Spectroscopy Solutions
Manufacturing Company: HORIBA France SAS

Relying on our double expertise in optical and mechanical design, we are your best partner to offer custom solutions that will closely answer to the requirements of your particular application.

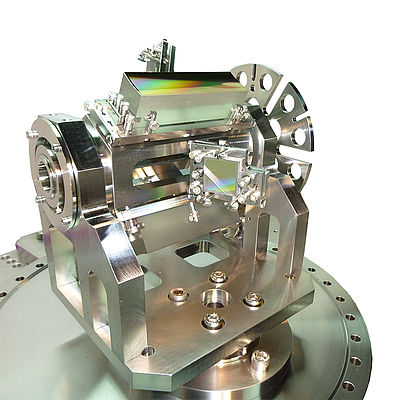

NI-GI monochromator: 6 gratings

HEXOS Spectrometers







Some examples of custom monochromators/spectrographs:

  • NI-GI monochromator for PTB-Berlin: consists in a 6 gratings monochromator working in normal and grazing incidence to cover a very large spectrum (from 5 nm to 400 nm)
  • HEXOS Spectrometers for W7-X: consists in 2 double spectrometers (4 gratings) pointing the same point in a tokamak and covering a spectral range from 2.5 nm to 16 0nm in one shot.

Vacuum System - VUV Transmission

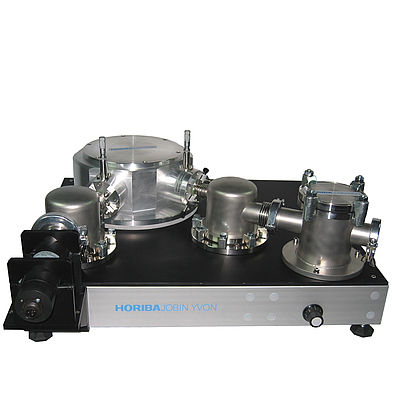

Vacuum Spectrometer VUV transmission

Use of H20UVL for VUV transmission

The VUV Transmission system consists in a Deuterium light source (DLS200) combined with a H20-UVL for sample illumination in the range 115-400 nm. The transmitted signal is acquired by a PMT detector located in the sample chamber. The sample chamber is equipped with an 8 positions sample wheel. The whole system is controlled via HORIBA Scientific software.




Vacuum System - VUV Fluorescence

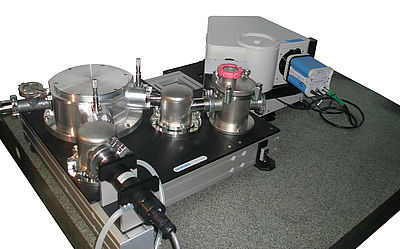

Vacuum Spectrometer VUV Fluorescence

Fluorescence instrument based on H20-UVL and iHR320

The VUV Fluorescence system consists in a Deuterium light source (DLS200) combined with a H20-UVL for sample excitation in the range 115-400 nm. The fluorescence analysis is done in the visible range by an iHR spectrometer. The sample chamber is equipped with a 4 positions turret and a viewport to visualize the selected sample. The whole system is controlled via HORIBA Scientific software.





订制案例点击下载
