Acton 通用性光谱仪

作者: KEVIN    发布于: 2015-03-25 00:24    点击:





Acton Series Monochromators & Spectrographs

Acton Standard Series

Now available with our revolutionary software:
LightField software

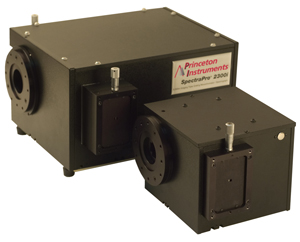

Acton Series Monochromators and Spectrographs

The Acton Series of monochromators and spectrographs has long been known as the industry standard for delivering the highest quality data for research labs worldwide.

The Acton Series is an excellent choice for researchers who require a basic, but flexible monochromator/spectrograph to integrate in their experiment setup. Features include manual micrometer adjustable slits as well as a three-position grating turret to provide a rugged, reliable and high-performance instrument suited for a variety of demanding applications such as Raman, fluorescence and absorption spectroscopy. Complimenting these spectrometers is a complete line of accessories that optimize the instrument's performance and provide for easy setup of the instrument. The Acton Series is available in four focal lengths: 150mm,300mm,500mm and 750mm.


Model Focal Length Aperture Ratio PMT Resolution* CCD Resolution** Linear Dispersion*
SP2150 150 mm f/4.0 0.4 nm 0.4 nm 4.17 nm/mm
SP2300 300 mm f/3.9 0.1 nm 0.14 nm 2.38 nm/mm
SP2500 500 mm f/6.5 0.05 nm 0.09 nm 1.52 nm/mm
SP2750 750 mm f/9.7 0.03 nm 0.06 nm 1.03 nm/mm



Acton Series 2750

*with 1200 g/mm grating @ 435.8 nm
and 10 micron slit width
and 4 mm slit height

** with 1200g/mm grating @ 435.8nm
20micron pixel, 20micron slit width



Get more information about Acton Optics & Coatings #1200, #1900, silver and gold coatings

Looking for a double monochromator or spectrograph? Contact your local sales representative for product information.

Grating Options

Groove Density Blaze Wavelength Sizes (mm) Efficiency Curve
50 g/mm 600 nm 32 x 32
68 x 68
68 x 84
view curve
75 g/mm 8 um 68 x 68 view curve
150 g/mm 1.25 um 68 x 68
150 g/mm 4 um 32 x 32
68 x 68
68 x 84
150 g/mm 300 nm 32 x 32
68 x 68
68 x 84
150 g/mm 500 nm 32 x 32
68 x 68
68 x 84
150 g/mm 800 nm 32 x 32
68 x 68
68 x 84
300 g/mm 1 um 32 x 32
68 x 68
68 x 84
300 g/mm 1.2 um 68 x 68
300 g/mm 2 um 32 x 32
68 x 68
68 x 84
300 g/mm 300 nm 32 x 32
68 x 68
68 x 84
300 g/mm 500 nm 32 x 32
68 x 68
68 x 84
300 g/mm 750 nm 32 x 32
68 x 68
68 x 84
600 g/mm 1 um 32 x 32
68 x 68
68 x 84
600 g/mm 1.25 um 68 x 68
600 g/mm 1.6 um 32 x 32
68 x 68
68 x 84
600 g/mm 150 nm 68 x 68
600 g/mm 300 nm 32 x 32
68 x 68
68 x 84
600 g/mm 500 nm 32 x 32
68 x 68
68 x 84
600 g/mm 750 nm 32 x 32
68 x 68
68 x 84
900 g/mm 550 nm 68 x 68
68 x 84
1200 g/mm 150 nm 68 x 68
1200 g/mm 300 nm 32 x 32
68 x 68
68 x 84
1200 g/mm 500 nm 32 x 32
68 x 68
68 x 84
1200 g/mm 750 nm 32 x 32
68 x 68
68 x 84
1200 g/mm 850 nm 32 x 32
68 x 68
68 x 84
1200 g/mm blazed holographic
UV optimized
32 x 32
68 x 68
68 x 84
1200 g/mm holographic
VIS optimized
32 x 32
68 x 68
68 x 84
1800 g/mm 500 nm 32 x 32
68 x 68
68 x 84
1800 g/mm blazed holographic
UV optimized
32 x 32
68 x 68
68 x 84
1800 g/mm holographic
VIS optimized
32 x 32
68 x 68
68 x 84
2400 g/mm 150 nm 68 x 68
2400 g/mm 240 nm 32 x 32
68 x 68
68 x 84
2400 g/mm blazed holographic
UV optimized
32 x 32
68 x 68
68 x 84
2400 g/mm holographic
VIS optimized
32 x 32
68 x 68
68 x 84
3600 g/mm 130 nm 68 x 68
3600 g/mm 240 nm 32 x 32
68 x 68
68 x 84
3600 g/mm holographic
UV optimized
32 x 32
68 x 68
68 x 84
